Object 001

GIDE Mount

A wall-mounted display hook engineered for jerseys and everyday hangers. The cantilevered arm profile reads as furniture, not hardware — concealed fasteners, matte-finish polymer body, and a geometry derived entirely from load requirements.

Material
3D-printed matte black polymer (ASA)
Use
Wall-mounted display hook for jerseys and everyday hangers
Mounting
Single M5 bolt through slotted wall plate, concealed cap
Load Rating
4 kg static / 2 kg dynamic (tested)
Finish
Matte black, no topcoat — surface is the material
Status
Available — made to order

Photography

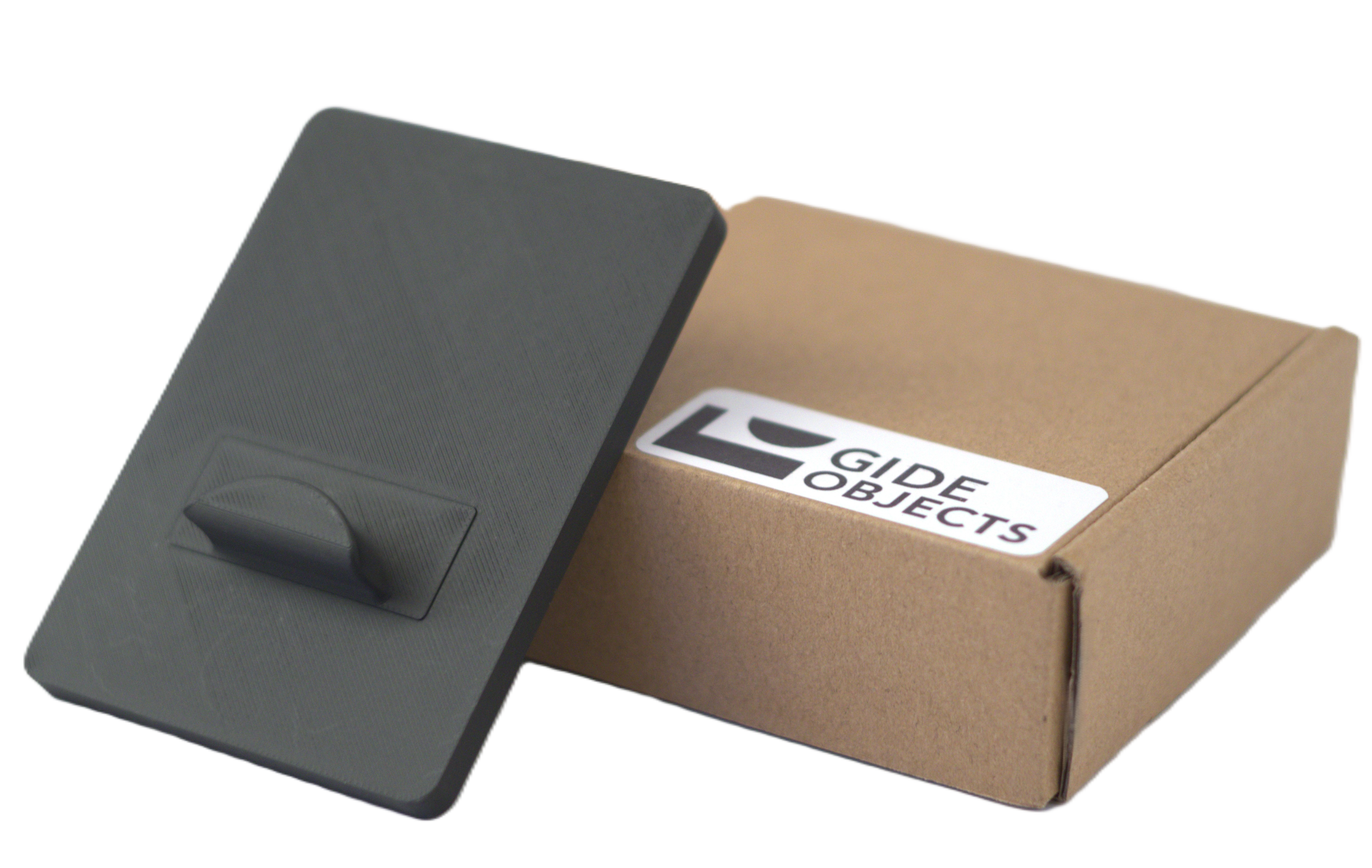

GIDE Mount — top-down view
Hero / Top-Down

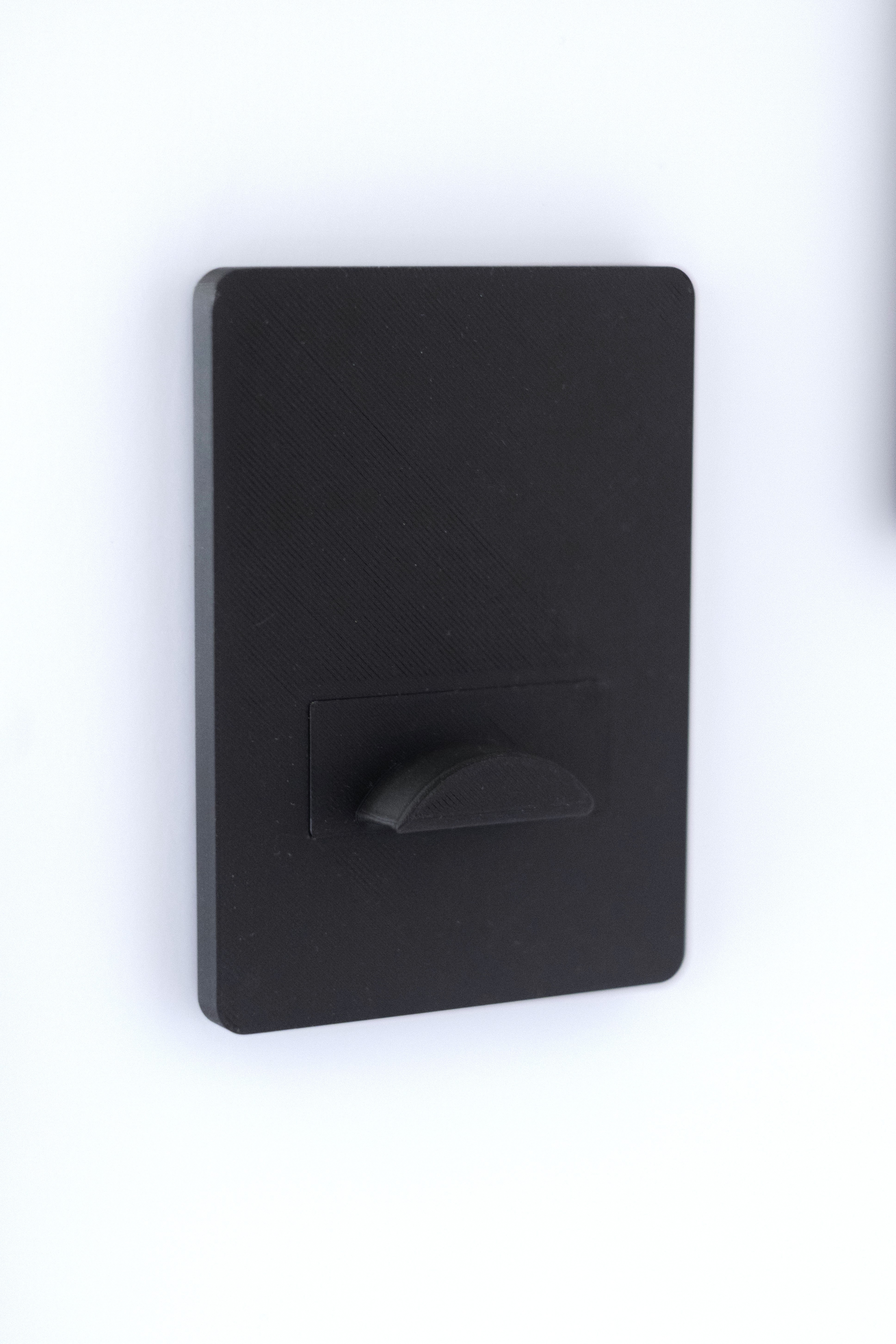

GIDE Mount — trimetric form view
Form / Trimetric

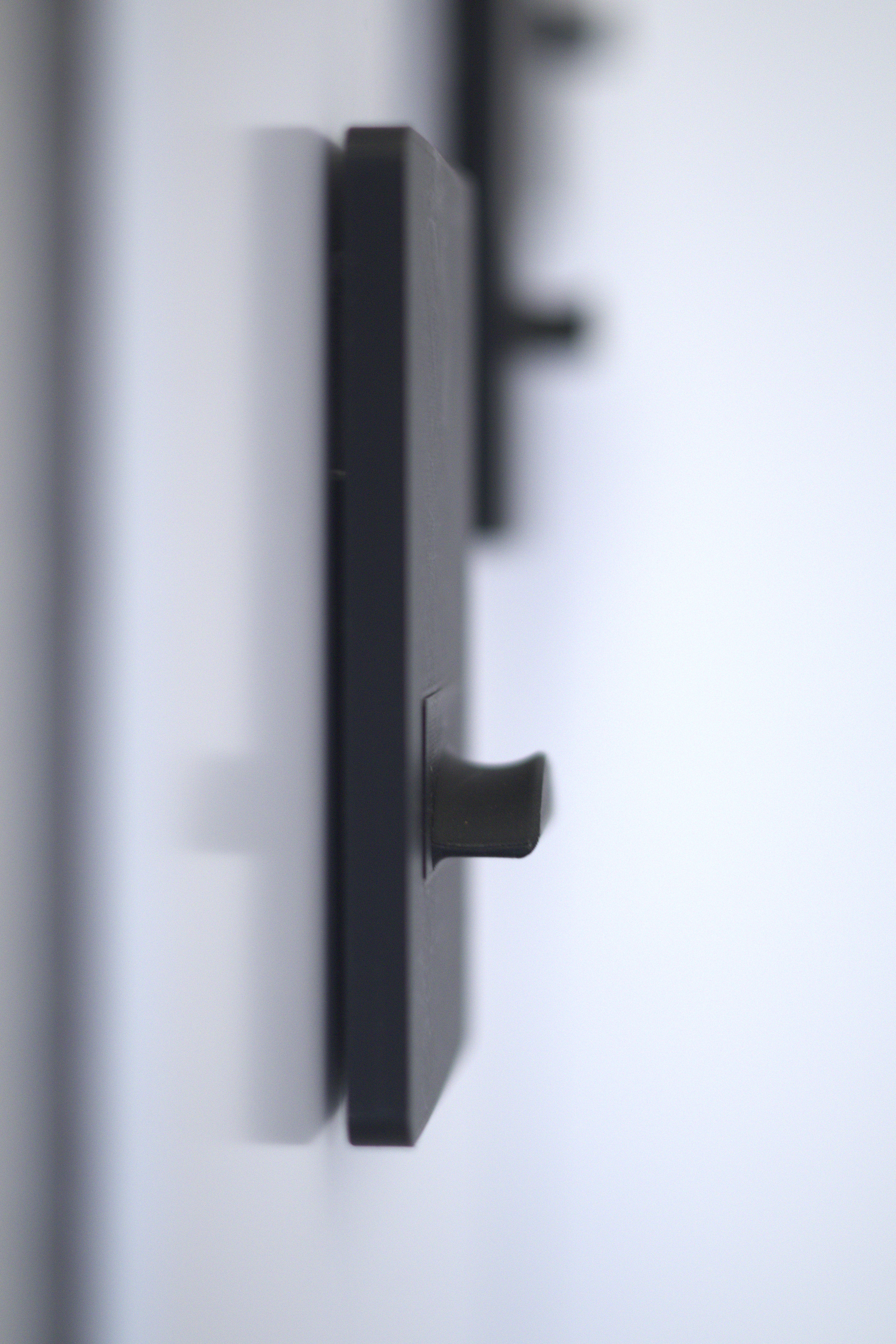

GIDE Mount — profile view
Profile View
GIDE Mount — detail macro
Detail Macro

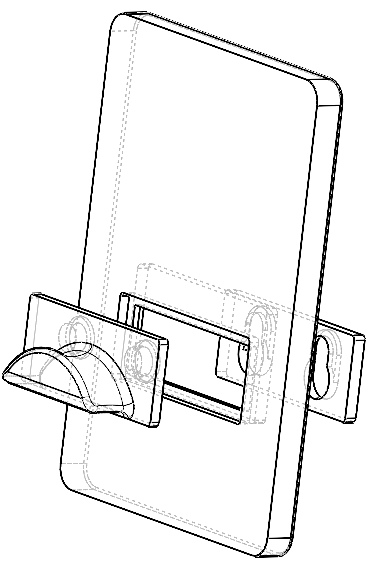

GIDE Mount — exploded view
Exploded View

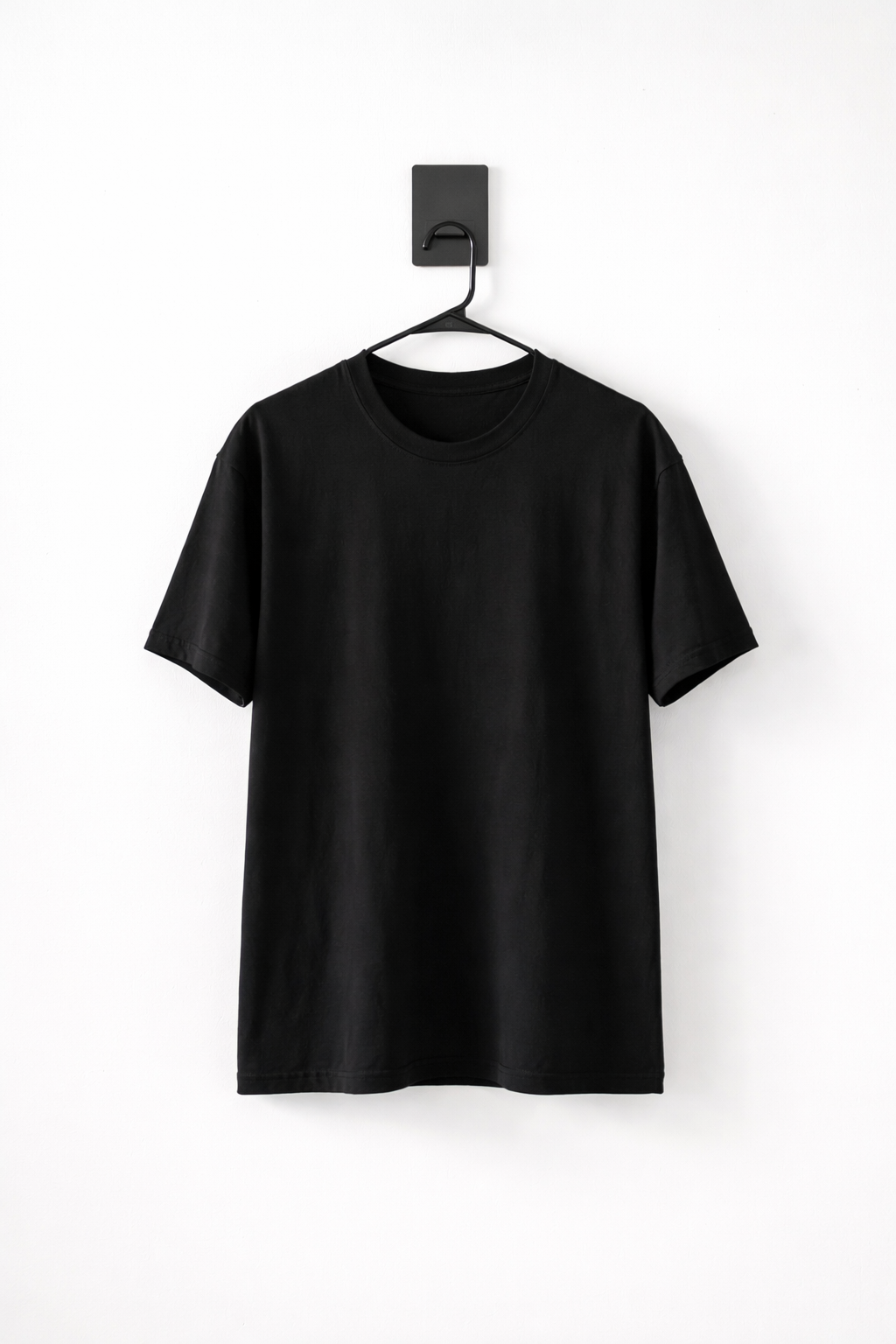

GIDE Mount — in-use lifestyle
In-Use

Technical Notes

The arm geometry was derived from a simple cantilever model with a 4 kg point load at the tip. Wall thickness varies along the arm — thicker at the root, tapering toward the tip — which produces the visual taper while maintaining constant stress distribution. There is no unnecessary material.

The mounting plate uses a single M5 bolt in a vertical slot, allowing fine height adjustment on installation. A friction-fit cover cap conceals the bolt head after installation. The cap is retained by interference fit only — no adhesive, no tools required.

Material and process notes:

  • ASA chosen over ABS for UV stability — no topcoat required
  • 0.2 mm layer height, 4 perimeters, 40% gyroid infill
  • Matte black filament — surface texture is inherent, not applied
  • All mounting hardware: A2 stainless steel M5 hex socket
  • Wall plate: 3 mm mild steel, powder-coated black
  • Prototype count: 4 revisions before production
  • Tested load: 6 kg static, 1000-cycle dynamic at 2 kg
Available to order. View in Shop
